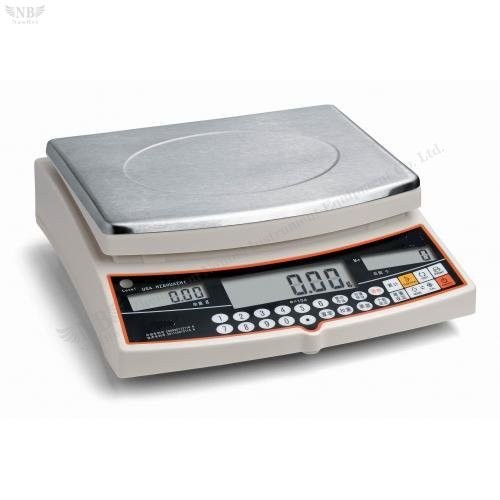

Электронные весы серии NBL

Два режима работы/Двойной диапазон взвешивания: Подсчет/Весы для взвешивания Серия NBL Арт. 0,02 г/0,02 г 5℃-



Два режима работы/двойной диапазон взвешивания: подсчет/весы серии NBL

Item No.

Max Cap

Readability

Repeatability

Linearity

Work Temp

Pan Size

Housing Size

Warm-up Time

NBL-1.5kg

1.5kg/3kg

0.01g/0.02g

±0.02g/±0.02g

±0.02g/±0.02g

5℃-35℃

180*225mm

320*310*120mm

10-20minutes

1.5kg/3kg

0.02g/0.05g

±0.02g/±0.05g

±0.02g/±0.05g

5℃-35℃

180*225mm

320*310*120mm

10-20minutes

1.5kg/3kg

0.05g/0.05g

±0.05g/±0.05g

±0.05g/±0.1g

5℃-35℃

180*225mm

320*310*120mm

10-20minutes

NBL-3kg

3kg/5kg

0.01g/0.02g

±0.02g/±0.02g

±0.03g/±0.04g

5℃-35℃

180*225mm

320*310*120mm

10-20minutes

3kg/5kg

0.02g/0.05g

±0.02g/±0.05g

±0.04g/±0.05g

5℃-35℃

180*225mm

320*310*120mm

10-20minutes

3kg/5kg

0.05g/0.05g

±0.05g/±0.05g

±0.1g/±0.1g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

3kg/5kg

0.1g/0.2g

±0.1g/±0.2g

±0.2g/±0.4g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

NBL-6kg

6kg/20kg

0.1g/0.5g

±0.1g/±0.5g

±0.2g/±0.5g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

6kg/15kg

0.2g/0.5g

±0.2g/±0.5g

±0.2g/±0.5g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

NBL-10kg

10kg/20kg

0.1g/0.2g

±0.1g/±0.2g

±0.2g/±0.2g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

10kg/20kg

0.2g/0.5g

±0.2g/±0.5g

±0.2g/±0.5g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

NBL-15kg

15kg/30kg

0.1g/0.2g

±0.1g/±0.2g

±0.2g/±0.4g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

15kg/30kg

0.2g/0.5g

±0.2g/±0.5g

±0.2g/±0.5g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

15kg/30kg

0.5g/0.5g

±0.5g/±0.5g

±1g/±2g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

NBL-20kg

20kg/30kg

0.1g/0.2g

±0.1g/±0.2g

±0.2g/±0.4g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

20kg/10kg

0.5g/0.2g

±0.5g/±0.2g

±1g/±0.4g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

20kg/30kg

1g/1g

±1g/±1g

±1g/±2g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

NBL-30kg

30kg/50kg

0.1g/0.5g

±0.1g/±0.5g

±0.3g/±1g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

30kg/15kg

0.5g/0.2g

±0.5g/±0.2g

±1g/±0.2g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

30kg/50kg

1g/1g

±1g/±1g

±2g/±2g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

NBL-50kg

50kg/10kg

0.5g/0.1g

±0.5g/±0.1g

±1g/±0.2g

5℃-35℃

205*295mm

320*310*120mm

10-20minutes

Описание (основная функция, спецификация)

◆ Dual   Working Mode: Weighing / Counting

◆ Dual   Weighing Range Weighing Precision

◆ Default   Current Setting/Mode Function

◆ Load   cell Base

◆ 14   Units Available : g,ct,lb,oz,ozt,GN,dwt...

◆ Counting   And Weighing

◆ Weight   / Qty accumulative total

◆ %   Percentage Weighing

◆ Large   LCD display with backlight adjustable

◆ Unit   Weight Previously setting / saving

◆ Weight   Mass changeable for  CAL

◆ Weighing   Response time Adjustable

◆ Zero   tracking adjustable

◆ Price   Include Rechargeable Battery

◆ Range   of Dynamic detect adjustable

◆ Level   of Sensitivity changeable

◆   Weighing/Counting Mode can set alarm in or out zone



★ Optional   with RS232

★ Optional   with Multiple RS232  output way

★ Optional   with Under Hook
