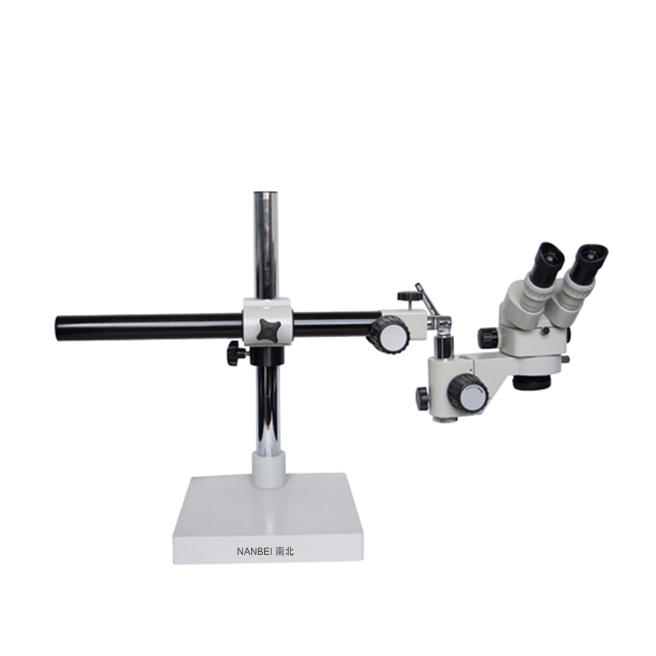

Стереомикроскопы серии XTB XTB + V10
стереомикроскоп, стереомикроскоп, стереомикроскоп с гибким кронштейном
Standard configurations
| Zoom ratio | 1：4 |
| Objective zoom range | 1X-4X |
| Eyepice,Big Eyepiece | 10X eyepiece, 20Xeyepiece, 2X big eyepiece |
| Working distance | 95mm |
| Interpupillary distance adjustment range | 55mm-75mm |
| Binocular head | inclination of 45。 |
| Diopter adjustment | ±5 diopter |
| Optical body rotation | 360。 |
Technical data
|
Project
|
Auxiliary Objective
|
Eyepiece
|
Working distance(mm)
|
|||||||
|
WF10X
|
WFl5X
|
WF20X
|
WF25X
|
|||||||
|
Magnifi-cation
|
Visual field
|
Magnifi-cation
|
Visual field
|
Magnifi-cation
|
Visual field
|
Magnifi-cation
|
Visual field
|
|||
|
Data
|
0.5X
|
5X-20X
|
40-10
|
7.5X-30X
|
32-8
|
10X-40X
|
26-6.6
|
12.5X-50X
|
24-6
|
160
|
|
0.75X
|
7.5X-30X
|
26.7-6.7
|
11.3X-45X
|
21.3-5.3
|
15X-60X
|
17.3-4.4
|
18.8X-75X
|
16-4
|
120
|
|
|
1X
|
10X-40X
|
20-5
|
15X-60X
|
16-4
|
20X-80X
|
13-3.3
|
25X-100X
|
12-3
|
97
|
|
|
1.5X
|
15X-60X
|
13.3-3.3
|
22.5X-90X
|
10.7-2.7
|
30X-120X
|
8.7-2.2
|
37.5X-150X
|
8-2
|
45
|
|
|
2X
|
20X-80X
|
10-2.5
|
30X-120X
|
8-2
|
40X-160X
|
6.5-1.6
|
50X-200X
|
6-1.5
|
30
|
|
