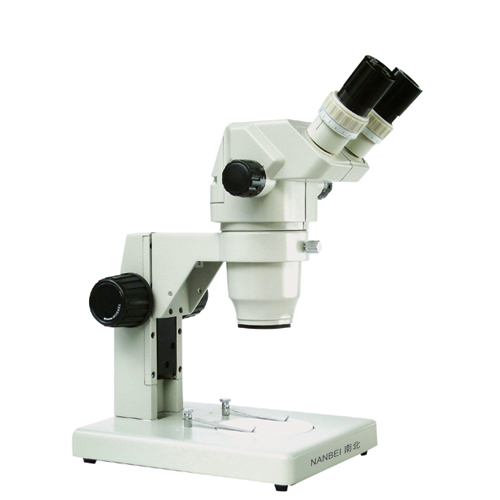

GL-99B Стереомикроскопы
The high performance GL Series stereo microscopes utilize a Greenough design and feature a 1:7 zoom ratio with a 103mm working distance and a large visual field. Their parfocality allows an erect image of the observed specimens to stay in f
The high performance GL Series stereo microscopes utilize a Greenough design and feature a 1:7 zoom ratio with a 103mm working distance and a large visual field. Their parfocality allows an erect image of the observed specimens to stay in focus through repeated changes in the magnification. They feature a guidepost structure, making them lightweight, and a pair of horizontal magnification changing knobs to maximize comfort. Adding to the ergonomics is a choice of observation angle, either 45 or 60 degrees. In addition to performance and comfort, a highlight of the GL is their durability. Promoting one of the finest ball bearing guideways in the world, the focusing mechanism is extremely robust.
Standard configurations
Zoom ratio | 1:7 |
Objective zoom range | 0.65X-4.5X |
Eyepice | SWF10X/22mm |
Working distance | 103mm |
Interpupillary distance adjustment | 55mm-75mm |
Binocular head | inclination of 45。or 60。 |
Diopter adjustment | ±5 diopter |
Optical Body Rotation | 360。 |
Технические данные
Project
|
Auxiliary Objective
|
Eyepiece
|
Working distance(mm)
|
|||||||
SWF10X
|
WFl5X
|
WF20X
|
WF25X
|
|||||||
Magnifi-cation
|
Visual field
|
Magnifi-cation
|
Visual field
|
Magnifi-cation
|
Visual field
|
Magnifi-cationn
|
Visual field
|
|||
Data
|
0.5X
|
3.3X-22.5X
|
67.7-9.8
|
4.9X-33.8X
|
49.2-7
|
6.5X-45X
|
40-5.8
|
8.1X-56.3X
|
37-5.2
|
163
|
0.75X
|
4.9X-33.8X
|
45.1-6.5
|
7.3X-50.6X
|
32.8-4.7
|
9.75X-67.5
|
26.6-3.8
|
12.2X-84.4X
|
24.6-3.5
|
117
|
|
1X
|
6.5X-45X
|
33.8-4.9
|
9.8X-67.5X
|
24.6-3.5
|
13X-90X
|
20-2.9
|
16.3X-112.5X
|
18.5-2.6
|
103
|
|
1.5X
|
9.8X-67.5X
|
22.5-3.3
|
14.6X-101.3
|
16.4-2.3
|
19.5X-135X
|
13.3-1.9
|
24.4X-168.8X
|
12.3-1.7
|
45
|
|
2X
|
13X-99X
|
16.9-2.5
|
19.5X-135X
|
12.3-1.8
|
266X-180X
|
10-1.4
|
32.5X-225X
|
9.2-1.3
|
40
|
