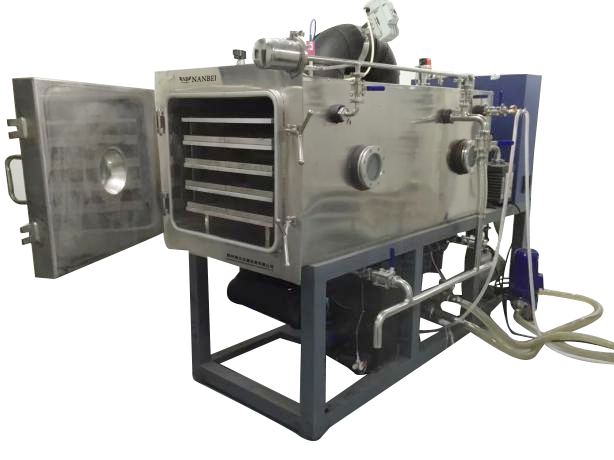

NB-200F Фармацевтическая сублимационная сушилка большого размера
NB-200F Фармацевтическая сублимационная сушилка большого размера 1. Общее 2. Комната 3 Полки 4 Конденсатор 1. Общие Технические данные Общая площадь 2,25 м 2 Способность заб
NB-200F Фармацевтическая сублимационная сушилка большого размера
1. Общие 2. Комната 3 Полки 4 Конденсатор
| 1. General | |
| Item | Technical data |
| Total Square | 2.25m2 |
| Ability to capture water | 25 kg/batch 6.5KW |
| Power（50Hz/380V） | 6.5KW total power not working power Consume power＜＜18 KWh） |
| Cooling water | About 5 m3/h（≤25℃） |
| Host L×W×H | About 2100mm*1200mm1700mm（Against real drawing ） |
| structure | Whole machine one piece |
| Total weight | About 1500kg |
| Compressed air | 0.5 ～ 0.6 MPa |
| Power | 3 Phase 5 lines 380V 50Hz |
| Condenser capacity | 50L |
| Capacity in 24 hours | 20L ice |
| Vacuum pump | · Vacuum pump with flow rate not less than 490 l/minute with exhaust oil filter |
| 2. Chamber | |
| Item | Technical Data |
| Inner chamber material | AISI 304 AISI 304 stainless steel |
| Lock method | Manual rotation door lock |
| Chamber door sealing | Fixed type single way door sealing |
| Chamber door open position | From right to Left (Against client’s requirement ) |
| Chamber door material | AISI 304 Stainless steel |
| Chamber roughness | Ra ≤ 0.5 μm |
| Chamber shape | Rectangle |
| Heating preservation material | PU integral eps（Suit with environmental requirement ） |
| Outer chamber decoration | AISI 304 stainless steel drawbench plate |
| 3 Shelves | |
| Item | Technical Data |
| Tray material | AISI 316 stainless steel |
| Surface roughness | Ra ≤ 0.5 μm |
| Tray No | 5＋1 |
| Tray space | 100mm |
| Tray size (L*W*H)mm | About W450 mm × D600 mm ×H20 mm |
| Tray refrigerant cooling data | +20℃～-40℃≤60 Minutes (free loading ) |
| Tray refrigerant Heating data | -40℃～+20℃≤60分钟(free loading ) |
| Tray lowest temperature | -70℃ |
| Tray highest temperature | + 65℃ |
| Heating power | 3 kW |
| Tray smoothly | ≤ ±1 mm/m |
| Protection hurdle | Tray ,metal hose and fluid shunt (wedding )fixed directly ,to ensure that the tray layer in the long time no oil leakage and easy for cleaning ,plate layer of left ,right after all three sides protection article in order to prevent the plate /bottle than the plate |
| Tray top press | Hydraulic top press |
| 4 Condenser | |
| Item | Technical data |
| Condenser material | AISI 304 stainless steel |
| Condenser shape | Cylinder-shaped |
| Coiler material | ISI 304 stainless steel tube |
| Coiler shape | Outer coiler |
| Coiler area | 约 1.8 m2 |
| Inner surface roughness | Ra ≤ 0.5 μm |
| Condenser cooling data | +20℃～-40℃≤30min(no loading ) |
| Condenser lowest Tem | -85℃ |
| Defrost mode | electric defrosting |
| Temperature sensor | Platinum resistor |
| Heating preservation material | PU integral eps（Suit with environmental requirement |
| Outer chamber decoration | AISI 304 stainless steel drawbench plate |
